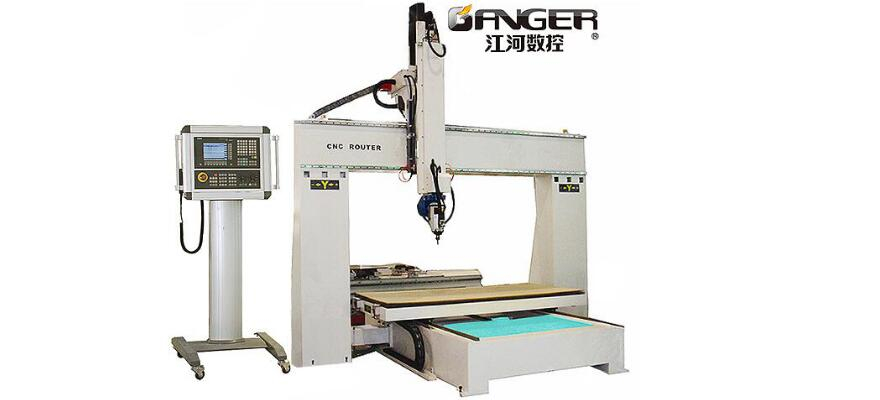

5 axis cnc router machine center Jinan manufacturer SH-1325

5 axis cnc router machine center Jinan manufacturer SH-1325

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier JINAN GANGER CNC CO.,LTD
| Factory
Experience:2005-05-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China jinan
  • Brand Name:  GANGERCNC
  • Model Number:  SH-1325
  • Weight: 3500.000 kg

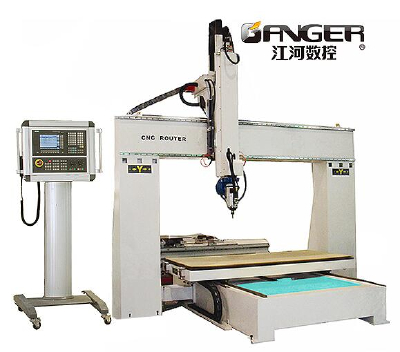

5 Axis Machining Center SH-1325
Machine features:
1.5 Axis control system, HSD spindle can rotate in 360º direction, easy to complete Sculptured
Surface Machining, Hollow Out Processing, and Polyhedron processing.
2.High efficiency servo drive motor, high strength gantry,and whole steel structure machine body,
all ensure machine’s steady running.
3. Auto tool changer with 8 tools ,can finish several processes one time:drill,bore ,mill,tap,
engraving and cutting. Largely reduce time of clamping,measuring and machine adjusting.
4.Diversified controller can control processing speed, running speed, tool disengaged speed,
cutting speed, greatly improving the quality of the products and the processing efficiency.
5. Intelligent processing and cross-border protection function can prevent mechanical collision

caused by processing oversize large files.


Technical parameters

1

X/Y/Z Axis working size

1850*3100*950mm

2

Max processing size

1300*2500*650mm

3

X/Y/Z Axis re-position accuracy

0.05mm

4

Max running speed

35m/min

5

Max working speed

20m/min

6

X/Y Axis transmission

Taiwan Helical rack and pinion drive

7

Z Axis transmission

Taiwan ABBA Ballscrew

8

Guide rail

Japan THK square guide rail

9

Working table

Vacuum absorption table

with Solenoid Switch, Vortex pump

10

Movement type

Movable table

11

A/C Axis

A :±120°,C ±262°

12

Spindle power

Imported Italy HSD 12KW 5 axis spindle

HSD HS655 double swing head with ES779 spindle (S1:10KW,S6:12KW)

13

Max spindle speed

24000rpm

14

Auto tool change

Disc type with 8 tools

15

Collet

ER40 3-26mm,HSK F63

16

Control system

German SIEMENS 5 axis system 840Dsl Pro

17

Driver system

German SIEMENS drive system,

Servo motor power:1500W*3pcs(X/Y axis), 2000W*1pc ( Z axis)

18

Tool sensor

with

19

Dust collector

with

20

Working voltage

380v/50Hz/3P

21

Gross weight

2500KGS

22

Wiring cables

Shanghai Echu

23

Limit switch

Japan Omron

24

Applications

MDF, Wood, PVC panel, Styrofoam, wax etc.
