- Size: 4200*1900*2200mm
- Place of Origin: Jinan
- Brand Name: GANGERCNC
- Model Number: SH-2513
- Weight: 2500.000 kg

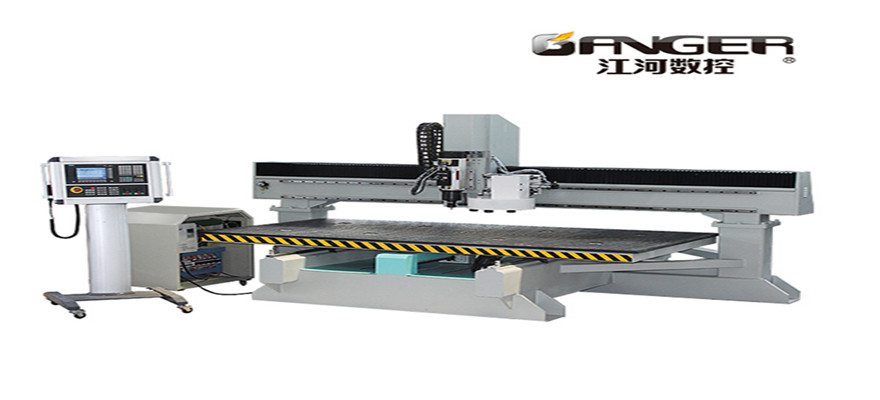

Machine features:
1. The machine adopts the special fixed beam and fixed column table-moving
structure,reasonable and advanced construction, have high rigidity. Table moving
type can guarantee the higher stability and precision than gantry moving type.
2. Adopting high-torque Germany Siemens servo motors and drivers,having
steady working capability and high positioning precision.good stability
and acceleration performance.
3 .X,Y,Z axis adopts Taiwan TBI rolling ball screw,wearable,high positioning
accuracy and good moving stability.
4.DISK-type Auto tool changing with 8 tools, only 8 seconds needed to change tool.
Suitable for works which need multiple tools. Intelligent control system brings you with high
efficiency production.
Applicable industry and materials
Mini word processing, hypotenuse word process,acrylic luminous words, logo
production, also applied in architectural models, plastic and wood models,
three dimensional surface processing for musical instruments, and suitable
to engrave on capper,aluminum, iron or cutting aluminum products.
Technical parameters |
|
Model | SH-2513 |
X/Y/Z Axis working size | 2500*1300*250mm |
Feeding height | 200mm |
X/Y/Z Axis reposition accuracy | 0.01mm/300mm |
Working table | Vacuum absorption table,table-moving |
X/Y/Z Axis transmission | Taiwan HIWIN Ball screw 32 |
Guide rail | Taiwan HIWIN 30 square guide rail |
Spindle power | Italy 9.0KW ATC spindle |
Max spindle speed | 24000rpm/min |
Collet/Blade diameter | ISO30 ER32 (3-20mm) |
Max running speed | 30m/min |
Max working speed | 17m/min |
Tool Cooling | Automatic spray |
ATC/cutter station quantity | Disk ATC 8 tools |
Motion control system | SIEMENS control system |
Driver motor | SIEMENS servo motor |
Gross weight | 2.5 t |
Remark: All machine models can be customized according to clients’ special requirement. | |
