- Size: 3500*2200*2200
- Place of Origin: Jinan
- Brand Name: GANGERCNC

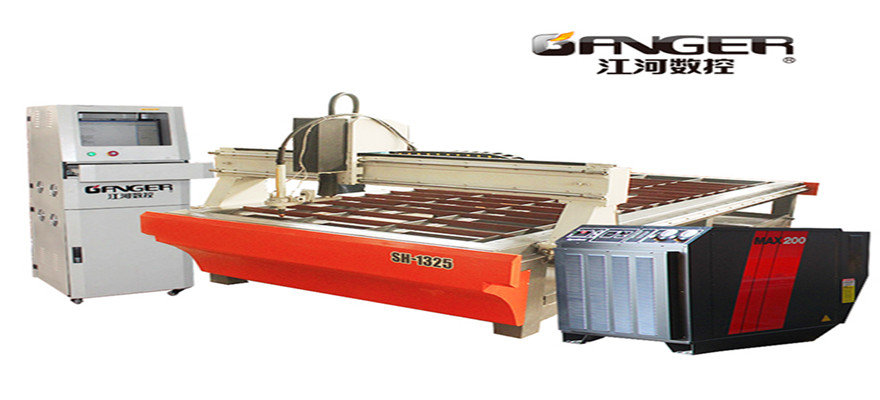

- Model Number: SH-1325
- Weight: 1200.000 kg
Machine features
1. Gantry structure,perfect bearing capability.Efficient double drive motor make cutting more
steadily even large distance needed.
2. Cutting edge is small and smooth,without any molten slag,thickness for metal cutting is up to 50mm.
3. With Arc voltage Auto Height-adjusting Device,can protect cutting torch from damage, increase
cutting quality.
Applied Industry & material
Applied industry: case shell of mechanical and electrical products processing,advertising signages,
process decoration,gardens,automobile,shipbuilding,electrical accessories cutting and
processing ,welding industry etc.
Applied material: Iron plate,stainless steel plate,titanium plate,galvanized sheet,high speed steeletc.
Technical parameters |
|
Model | SH-1325 |
Working size | X=1300,Y=2500,Z=70mm |
Working table size | 1300*2500mm |
Feeding height | 120mm |
Max running speed | 9m/min |
X/Y/Z axis transmission | X/Y Axis Gear and rack ,Z Axis Ball screw |
Plasma power | Chinese 120A/160A,/200A/imported USA Hypertherm 105A |
Cutting thickness | 0-12mm (100A,Carbon steel ， stainless steel) |
Auto height-adjusting device | with the device |
Acr control system | with the system |
Driver motor | Stepper motor/imported servo motor |
Control system | Start Control System/NC Studio Control System |
Gross weight | 1.2t |
