- Size: 3500*2200*2200
- Place of Origin: Jinan China
- Brand Name: GANGERCNC
- Model Number: SH-1530
- Weight: 1400.000 kg

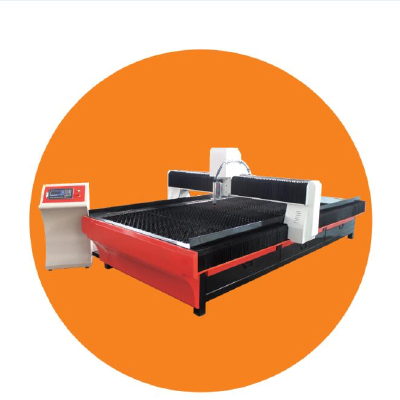

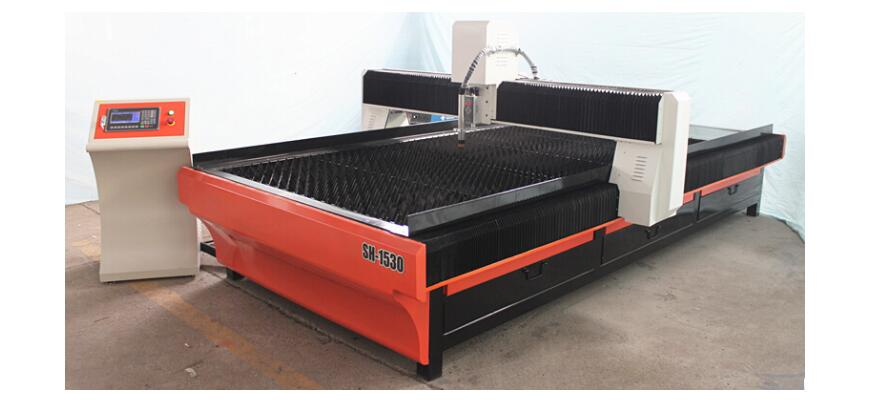

Plasma cutting machine SH-1530
1. Machine features
1. Gantry structure,perfect bearing capability.Efficient double drive motor make cutting more
steadily even large distance needed.
2. Cutting edge is small and smooth,without any molten slag,thickness for metal cutting is up to 50mm.
3. With Arc voltage Auto Height-adjusting Device,can protect cutting torch from damage, increase
cutting quality.
2. Applied Industry & material
Applied industry: case shell of mechanical and electrical products processing,advertising signages,
process decoration,gardens,automobile,shipbuilding,electrical accessories cutting and
processing ,welding industry etc.
Applied material: Iron plate,stainless steel plate,titanium plate,galvanized sheet,high speed steeletc.
3 .Machine technical details:
1 | X/Y/Z Axis working size | X=1 5 00,Y= 30 00,Z= 100 mm |
2 | Feeding height | 150mm |
3 | X/Y/Z Axis reposition accuracy | +/-0.2mm |
4 | Cutting accuracy | +/-0.4mm |
5 | Max working speed | 9m/min |
6 | X/Y Axis transmission | Gear and rack |
7 | Z Axis transmission | Taiwan ballscrew |
8 | Guide rail | Taiwan square guide rail |
9 | Plasma power | LGK 200A |
10 | Auto height-adjusting device | with |
11 | Acr control system | with |
12 | Control system | High quality START plasma cutting system |
13 | Driver system | Stepper motor |
14 | Working voltage | 380v/50Hz /3P |
15 | Gross weight | 1400KGS |
16 | Air compressor | with |
17 | Water chiller | with |
4 . Main features:
High end control system, Gantry structure,Gear rack transmission, High rigidity , High speed
