- Size: 2180*2180*1850mm
- Place of Origin: Jinan China
- Brand Name: GANGERCNC
- Model Number: SH-1212V
- Weight: 900.000 kg

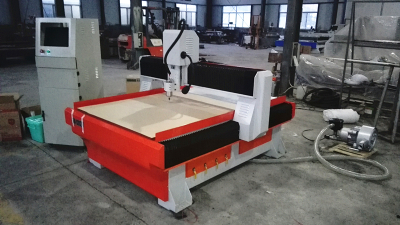

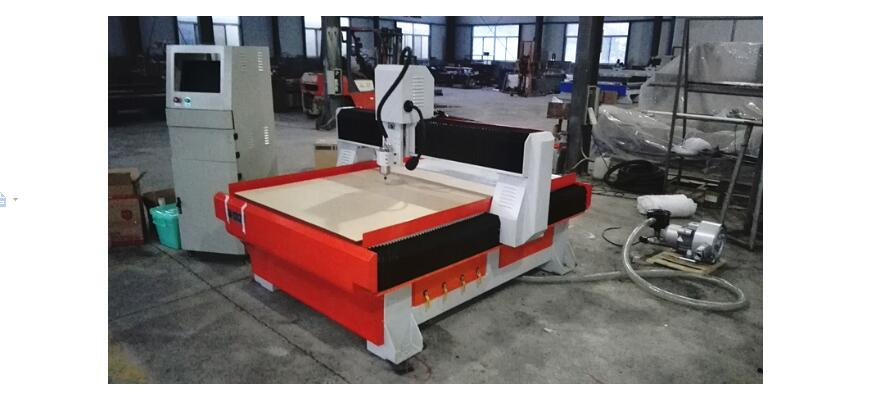

Economical and Practical wood engraving machine SH-1212V
Machine features:
1.Three axis (X.Y.Z axis) be covered dust-cover maintaining good functions of equipments.
2 .High strength steel tube jointing machine body.
3.Increasing the working efficiency, prolong the cutter life and increase the rate of finished products
4.Perfect performances. The professional human control system shows advantages as continuing carving when occurring breakpoint off power, processing time can be forecast, back to the origin, and automatic correction function.
Applicable materials and industries:
Furniture industry, automotive tooling industry,solid wood furniture, solid wood door, decoration material, door cabinets, computer tables, plate furniture, office furniture, wooden sound box, wooden kitchen furniture and other processing
1 | X/Y/Z Axis working size | 1200*1200*150mm |
2 | Feeding height | 200mm |
3 | Max running speed | 10m/min |
4 | Max working speed | 4-6m/min |
5 | X/Y Axis transmission | Helical Gear rack |
6 | Z Axis transmission | Ballscrew drive |
7 | Guide rail | Square guide rail |
8 | Working table | Vacuum absorption table with vacuum pump(5.5KW) |
9 | Spindle power | 1.5KW water cooling |
10 | S pindle speed | 0-24000rpm |
11 | Collet | ER11(1-7) |
12 | Control system | Ncstudio control system |
13 | Driver system | Stepper motor |
14 | Working voltage | AC220v/50HZ /1P |
15 | Command | G code ,HPGL,U00,mmg,plt |
16 | Machine body | Whole Cast Steel |
17 | Software compatibility | Type3,Artcam |
18 | E vacuator | with |
Feature | it can be used to engrave on acrylic,plexiglass, PVC board, lumber, artificial marble,copper, aluminum, plastic and other material. It is widely applied to the product label, construction model, handicraft, ornament, industry mold, instrument panel, Carpentry product and other processing industry. | |
Service Optional :
Cost of Our Engineer to Customer ’ s workshop,
1. Tickets (Round-trip Air ticket,train ticket .. ), Cost for Visa ,Accommodation, Transportation
2. 100$/day (Date counts according to Engineer’ s arrive and leave customer ’ s workshop )
| ||
