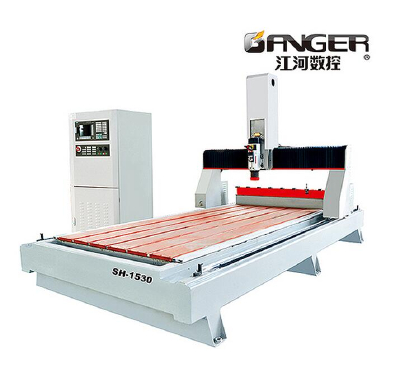

CNC machine center wood work Auto tool changing SH-1530ATC

CNC machine center wood work Auto tool changing SH-1530ATC

  • Min.Order Quantity: 1 Set
  • Supply Ability: 40 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier JINAN GANGER CNC CO.,LTD
| Factory
Experience:2005-05-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  3.43m*2.23m*2.05m
  • Place of Origin:  China jinan
  • Brand Name:  GANGERCNC
  • Model Number:  SH-1530ATC
  • Weight: 2000.000 kg
Wood CNC Machining Center with linear-type ATC SH-1530 ATC
Machine features:
1.SIEMENS control system and drive system,Global Warranty Service.
2.Disc Auto tool changing with 8 tools, only 8 seconds needed to change tool.
Suitable for works which need multiple tools. Intelligent control system brings you with high
efficiency production.
3. Vacuum absorption zones could be controlled through Siemens control system.
4.Whole machine adopts high rigidity steel structure,ensuring working steadiness and
anti-pressure ability.
Applicable Industry & Material
Applicable industry: wood furniture ,wooden crafts processing industry, suitable for large panel
cutting,large relief carving products and large carpentry engraving.
Applicable material: solid wood panel, artificial board,Acrylics,PVC,MDF,Plexiglass,plastic.etc

non-metal panels.


1

X/Y/Z Axis working size

X=1500mm, Y=3000mm,Z=160mm

2

Feeding height

200mm

3

X/Y/Z Axis reposition accuracy

0.01mm

4

Max running speed

35m/min

5

Max working speed

20m/min

6

X/Y Axis transmission

Gear and rack

7

Z Axis transmission

Taiwan ABBA Ball screw

8

Guide rail

Taiwan precision square guide rail 30

9

Working table

Vacuum absorption with vacuum pump

10

Spindle power

Italy HSD 12KW

11

Max spindle speed

24000rpm

12

ATC type and capacity

Disc type ATC 8

13

Collet

ISO30

14

Control system

German SIEMENS control system

15

Driver system

German SIEMENS drive system

16

Working voltage

380v/50HZ/3 phases

17

Gross weight /Packing size

2000KGS/3.43m*2.23m*2.05m(L*W*H)

18

Command

G code

19

Computer interface

USB port

20

Handwheel

with

21

Tool sensor

with

22

Dust collector

with

23

Auto oilling

with

24

Wiring cables

Shanghai Echu

25

Limit switch

Japan Omron

26

Software compatibility

Artcam

  • Size:  3.43m*2.23m*2.05m
  • Place of Origin:  China jinan
  • Brand Name:  GANGERCNC
  • Model Number:  SH-1530ATC
  • Weight: 2000.000 kg
