- Size: 3.43m*2.23m*2.05m
- Place of Origin: Jinan China
- Brand Name: GANGERCNC
- Model Number: SH-1325
- Weight: 1800.000 kg

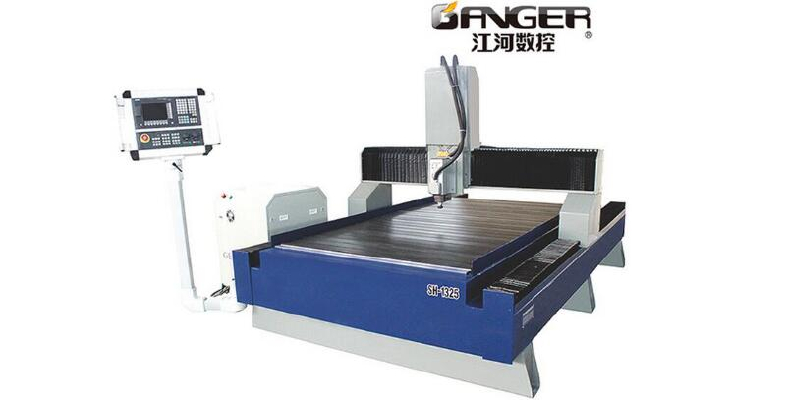

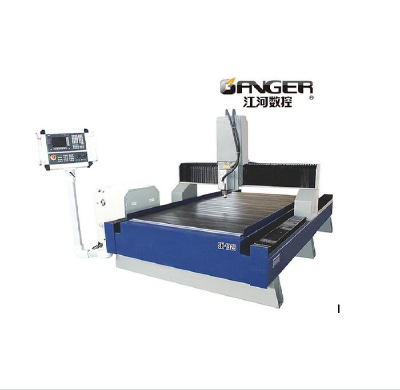

High-end wood engraving machine SH-1325
Machine features:
1. German SIEMENS control system & drive system, high precision ,Global Warranty Service.
2. Italy GC spindle, high precision,Low noise,long using life.
3. Whole machine adopts high rigidity steel structure,ensuring working steadiness and
anti-pressure ability.
Applicable industry and material:
Applicable industry: wood furniture ,wooden crafts processing industry, suitable for large panel
cutting,large relief carving products and large carpentry engraving.
Applicable material: solid wood panel, artificial board,Acrylics , PVC,MDF,Plexiglass, plastic .
etc non-metal panels.
2.Technical parameters
1 | X/Y/Z Axis working size | X=1300mm, Y=2500mm,Z=150mm |
2 | Feeding height | 200mm |
3 | X/Y/Z Axis reposition accuracy | 0.02mm |
4 | Max running speed | 30m/min |
5 | Max working speed | 20m/min |
6 | X/Y Axis transmission | Quality Helical Gear and rack |
7 | Z Axis transmission | Taiwan Ball screw |
8 | Guide rail | Taiwan PMI square guide rail |
9 | Working table | Aluminum profile with T slot |
10 | Spindle power | Italy GC 4.4KW air cooling spindle |
11 | Max spindle speed | 18000rpm |
12 | Collet | ER25(2-16mm) |
13 | Control system | High End German Siemens control system |
14 | Driver system | German Siemens servo motor |
15 | Working voltage | 380V/3P/50HZ |
16 | Gross weight | 2000KGS |
17 | Command | G code |
18 | Computer interface | USB port |
19 | Wiring cables | Shanghai Echu |
20 | Limit switch | Japan Omron |
21 | Software compatibility | Artcam |
