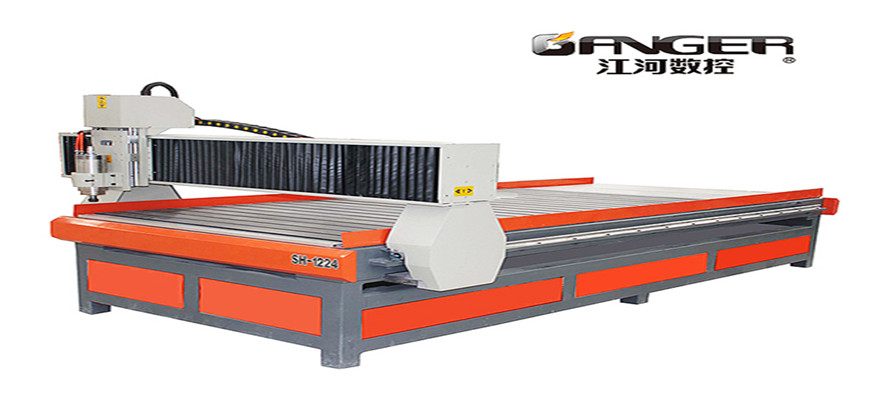

Machine Router Advertising Engraving Machine

Machine Router Advertising Engraving Machine

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 100 Set/Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier JINAN GANGER CNC CO.,LTD
| Factory
Experience:
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1700*3200*2200mm
  • Place of Origin:  Jinan
  • Brand Name:  GANGERCNC
  • Model Number:  SH-1224
  • Weight: 1200.000 kg

Machine features:

1.XYZ axis adopt to high- accuracy ball screw imported from Taiwan,

2. Adopt frequency conversion brushless spindle from domestic well-known brands,low noise,and high cutting-force,which can ensure the long-term processing.

3.Large compatibility. CAD/CAM designing software like Type 3/ArtCAM/Castmate /wentai and so on.



Applicable industry and material

Applicable industry: ourdoor light box,advertising logo,signage, seal, breastplate, handicraft, stationery, ornament,instrument panel, PCB board,carpentry product,etc

Applicable material: acrylic,double color board,PVC board, lumber, artificial marble, copper, aluminum, plastic and other material.





Technical parameters



Model

SH-1224

X/Y/Z Axis reposition accuracy

0.02mm

X/Y/Z Axis working size

X=1200,Y=2400,Z=160mm

Working table size

1200*2400mm

Feeding height

200mm

Max running speed

8m/min

Max working speed

6m/min

Working table

Aluminum profile working table

X/Y/Z Axis transmission

X/Y/Z Axis Ball screw

Spindle power

Water-cooled  2.2 kw

Max spindle speed

0-24000rpm

Collet/Blade diameter

ER 20 2-13mm

Driver motor

Stepper motor

Working voltage

220v/50Hz (single phase customized)

Control system

DSP control system

Gross weight

1.2  t

  Remark: All machine models can be customized according to clients’ special requirement.
