- Size: 1280*1300*1830mm
- Place of Origin: Jinan
- Brand Name: GANGERCNC

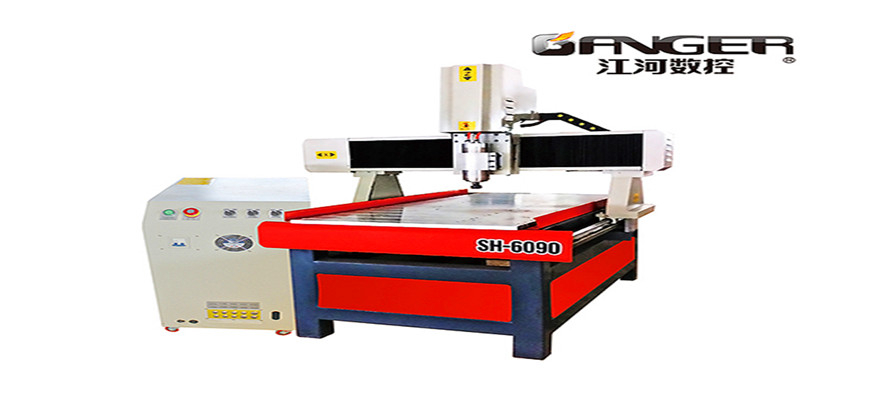

- Model Number: SH-6090
- Weight: 400.000 kg
Machine features:
1.XYZ axis adopt to high- accuracy ball screw imported from Taiwan,
2. Adopt frequency conversion brushless spindle from domestic well-known brands,low noise,and high cutting-force,which can ensure the long-term processing;
3.Large compatibility. CAD/CAM designing software like Type 3/ArtCAM/Castmate /wentai and so on.
Applicable industry and material ：
Applicable industry: ourdoor light box,advertising logo,signage, seal, breastplate, handicraft, stationery, ornament,instrument panel, PCB board,carpentry product,etc
Applicable material: acrylic,double color board,PVC board, lumber, artificial marble, copper, aluminum, plastic and other material.
Technical parameters |
|
Model | SH-6090 |
X/Y/Z Axis reposition accuracy | 0.015mm |
X/Y/Z Axis working size | 600*900*160mm |
Working table size | 600*900mm |
Feeding height | 200mm |
Max running speed | 8m/min |
Max working speed | 6m/min |
Working table | Aluminum profile working table |
X/Y/Z Axis transmission | X/Y/Z axis ballscrew |
Spindle power | Water-cooled 1.5kw |
Max spindle speed | 0-24000rpm |
Collet/Blade diameter | ER 11 1-6mm |
Driver motor | Stepper motor |
Working voltage | 220v/50Hz (single phase ， customized) |
Control system | DSP control system |
Gross weight | 400kgs |
Remark: All machine models can be customized according to clients’ special requirement. | |
