- Size: 2.4*1.5*1.64m
- Place of Origin: Jinan
- Brand Name: GANGERCNC

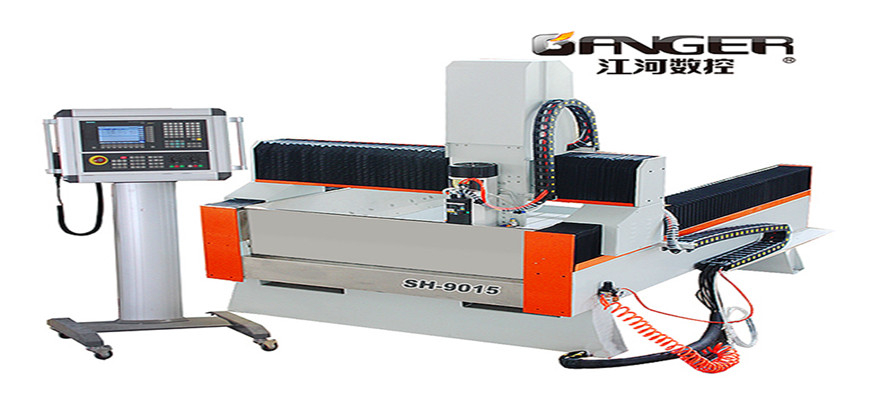

- Model Number: SH-9015ATC
- Weight: 1300.000 kg
Machine features:
1.Three axises adopt linear guide rail, running smoothly with high precision.
2. With linear ATC,8 tools positions, it only needs 8 seconds to change tools,high efficiency.
Applicable for products which need to be finished within 8 types of tools.
3. Adopt frequency conversion brushless spindle from domestic well-known brands with low noise
and high cutting-force,which can ensure the long-term processing;
4. Humanized control system shows advantages:continue engraving when broken point and
adjust processing time.
5. Whole steel structure machine body ensuring high stability.
Applicable industry and material:
Applicable industry:widely used in large stone panel engraving industry,craft processing
and building material industry.
Applicable material：stone,artificial marble,glass,brass,aluminum etc. Soft metal plate.
Technical parameters |
|
Model | SH-9015ATC |
X/Y/Z Axis reposition accuracy | 0.02mm |
X/Y/Z Axis working size | X=900,Y=1500,Z=300mm |
Working table size | 900*1500mm |
Feeding height | 300mm |
Max running speed | 35m/min |
Max working speed | 12m/min |
Working table | Aluminum profile with T slot ,water-tank |
X/Y/Z Axis transmission | X/Y Axis Gear and rack ,Z Axis Ball screw |
Guide rail | Square guide rail |
Spindle power | 9.0kw air coolant spindle |
Max spindle speed | 0-24000rpm |
Collet/Blade diameter | ER 32 3-20mm |
ATC/cutter station quantity | Linear ATC ， 6 cutter stations |
Driver motor | Stepper motor and driver |
Working voltage | AC380v/50Hz |
Control system | NC Studio NK300 |
Gross weight | 1.3t |
Remark: All machine models can be customized according to clients’ special requirement. | |
