- Size: 3490*2130*1800mm
- Place of Origin: Jinan China
- Brand Name: GANGERCNC
- Model Number: SH-1325
- Weight: 1200.000 kg

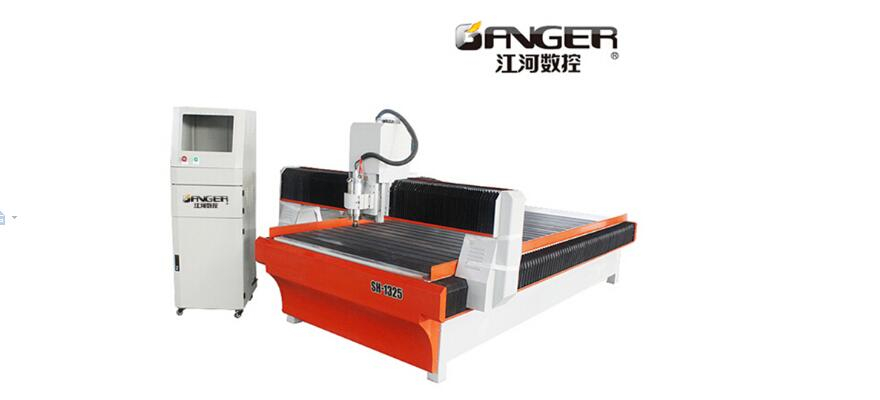

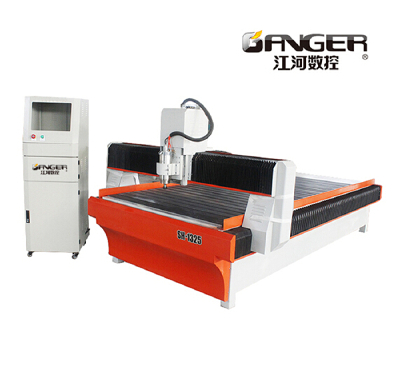

Wood CNC router for guitar making ,cnc wood router SH-1325
Machine features:
1.Using drive motor with features of high-speed water-cooled, constant power, frequency conversion:high frequency, long using life, strong cutting, wide speed range, high torque, and keep rate of constant dynamic , strong adaptability and high accuracy.2.Main machine parts can adopt imported brands for your pursue of high quality.
3.Large compatibility. CAD/CAM designing software like Type 3/ArtCAM/Castmate /wentai and so on
4.Whole machine of high rigidity steel structure,ensuring equipment’s steadiness and bearing capability of high pressure.
5.Professional human control system shows advantages as continuing carving when occurring breakpoint ,off power, processing time can be forecast, back to the origin, and automatic correction function.
Applicable industry and material:
Applicable industry: wood furniture ,wooden crafts processing industry, suitable for large panel cutting,large relief carving products and large carpentry engraving.
Applicable material: solid wood panel, artificial board, Acrylics ,PVC, MDF,Plexiglass, plastic.etc non-metal pane.
1 | X/Y/Z Axis working size | X=1300mm, Y=2500mm,Z=160mm |
2 | Feeding height | 200mm |
3 | X/Y/Z Axis reposition accuracy | 0.02mm |
4 | Max running speed | 25m/min |
5 | Max working speed | 12m/min |
6 | X/Y Axis transmission | Quality Helical Gear and rack |
7 | Z Axis transmission | Taiwan ABBA Ball screw |
8 | Guide rail | Taiwan PMI square guide rail |
9 | Working table | Aluminum profile with T slot |
10 | Spindle power | 3KW water cooled spindle(Chinese) |
11 | Max spindle speed | 24000rpm |
12 | Collet | ER20(2-13mm) |
13 | Control system | Ncstudio control system |
14 | Driver system | Stepper motor |
15 | Working voltage | 380v/50HZ/3 phases |
16 | Gross weight | 1300KGS |
17 | Command | G code |
18 | Computer interface | USB port |
19 | Wiring cables | Shanghai Echu |
20 | Limit switch | Japan Omron |
21 | Software compatibility | Type3,Artcam |
